JF-E27
单价:联系我们 cc_junfeng#163.com
| JunFeng Pure Electric JF -E27 20240409 | |||||

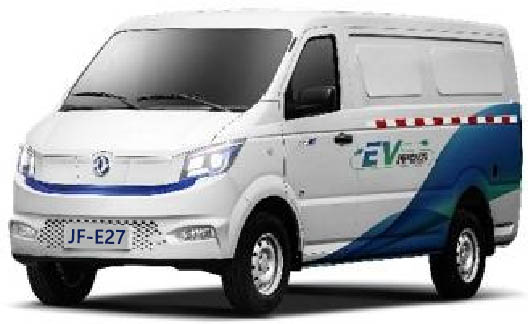

| 图片 | picture |
 |
|||
| 车型 MOdena | JF-E27 | ||||
| 项目 |
project |
EM27L | |||
|
基本配置参数Basic configuration parameters |
外型尺寸(mm) | External dimensions (mm) | 5265×1715×2060 | ||
| 货箱容积(m?) | Container volume (m) ?) | 6.8 | |||
| 轴距(mm) | Wheelbase (mm) | 3450 | |||
| 驱动方式 | Driving method |
后置后驱 Rear mounted rear wheel drive |
|||
| 总质量(kg) | Total mass (kg) | 3150 | |||
| 整备质量(kg) | Curb weight (kg) | 1640 | |||
| 额定载质量(kg) | Rated load capacity (kg) | 1380 | |||
| 制动方式 | Braking method |
前盘后鼓 Front disc and back drum |
|||
| 制动器 | Brakes | EPB | |||
| 轮胎 | tyre | 195 R14C | |||
|
三电系统 Three electrical systems |
电池类型 | Battery type |
磷酸铁锂 Lithium iron phosphate |
||
| PACK电池品牌 | PACK battery brand | CATL | 锂动 | 亿纬 | |
| 总电量(kWh) | Total electricity consumption (kWh) | 41.86 | 41.472 | 41.86 | |
| 电驱系统 | Electric drive system |
电机电控二合一 Two in one motor and electronic control |
|||
| 电机功率(kW) | Motor power (kW) | 35/70 | |||
| 电机扭矩(N·m) | Motor torque (N · m) | 90/230 | |||
| 充电方式 | Charging method |
快充可达1C,慢充3.3kw Fast charging can reach 1C, slow charging 3.3kw |
|||
| 性能指标performance index | 工况-续航里程(km) | Operating condition - range (km) | 230 | ||
| 最大爬坡度(%) | Maximum Climbing Slope (%) | ≥20 | |||
| 最高车速(km/h) | Maximum speed (km/h) | 90 | |||
|
|
|||||
| EM27、EM27L配置 |
|
高配 High end configuration |
标配 Standard configuration |
||
| 功能配置 | 中控液晶屏尺寸 | Central control LCD screen size | 10.25寸 | 7寸 | |
| 车门开启方式 | Door opening method |
右侧滑门+270°对开尾门 Right sliding door+270 ° split tailgate |
|||
| ECO模式 | ECO mode | ● | |||
| LED光源 | LED light source | ● | |||
| 多功能方向盘 | Multifunctional steering wheel | ● | |||
| 电动空调 | Electric air conditioning | ● | |||
| 大功率USB充电口2个 | Two high-power USB charging ports | ● | |||
| 货箱铝合金地板 | Aluminum alloy flooring for cargo boxes | ● | |||
| 倒车影像 | Reverse image | ● | |||
| 手机互联 | Mobile Internet | ● | - | ||
| 倒车雷达 | Reverse radar | ● | ○ | ||
| 自动大灯、日间行车灯 | Automatic headlights, daytime running lights | ● | ○ | ||
| 车前雾灯 | Front fog lights | ● | ○ | ||
| 慢充 | Slow charging | ● | ○ | ||
| 备胎 | Spare tire | ● | ○ | ||
| 标配： ● 选配：○ | |||||
